Li-ion,Li-Polymer PCM(Protection Circuit Module) 리튬이온,리튬폴리머 보호회로

1cell 용 10A~100A BMS

( 아래 이미지는 판매용이 아니며 제품생산에 필요한 자료입니다)

2cell 용 10A~100A BMS

3cell 용 10A~100A BMS

4cell 용 10A~100A BMS

5cell 용 10A~100A BMS

6cell 용 10A~100A BMS

7cell 용 10A~100A BMS

8cell 용 10A~100A BMS

10cell 용 10A~100A BMS

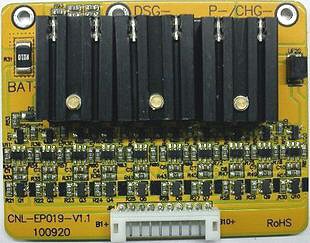

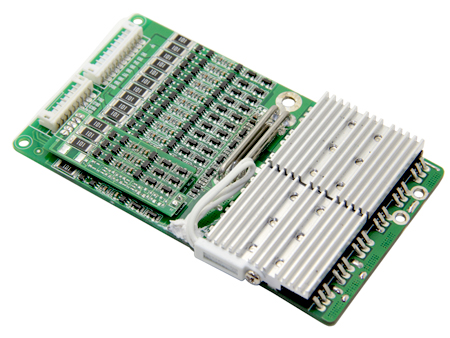

Protection Circuit Board(PCB) for 37V 10S Li-ion and Li-polymer battery pack

Features and Benefits (고급형 전기자전거,전동수쿠터용 36V 35A 급 BMS)

  1.Protection Circuit Board for 37V 10S 35A Li-ion and Li-polymer battery pack;
  2.BMS applies for 10 cells Li-ion/Li-polymer battery pack;
  3.To prevent the battery packs from overcharge,overdischarge,over current, over      temperature ,short circuit ;
  4.With cell balance/equilibrium function;
  5.Compatible with both Li-ion and Li-Polymer cells.

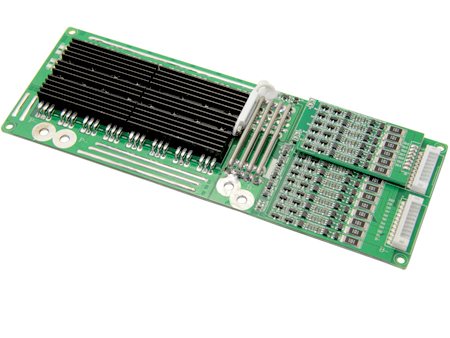

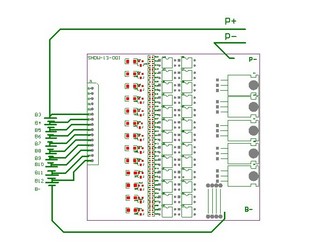

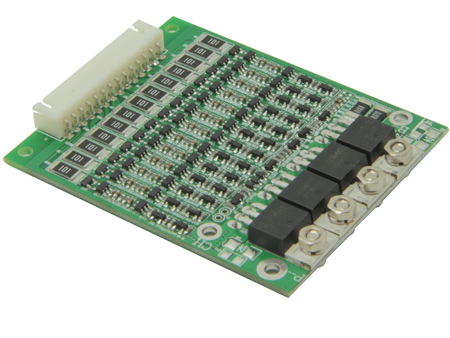

Battery Management Circuit(BMS) for 13S 44.4V Li-ion/Li-Polymer Battery Packs

Features and Benefits (고급형 전기자전거,전동수쿠터용 48V 40A 급 BMS)

  1.Protection Circuit Board for 48.1V 13S 40A Li-ion and Li-polymer battery pack;
  2.BMS applies for 13 cells Li-ion/Li-polymer battery pack;
  3.To prevent the battery packs from overcharge,overdischarge,over current, over      temperature ,short circuit ;
  4.With cell balance/equilibrium function;
  5.Compatible with both Li-ion and Li-Polymer cells.

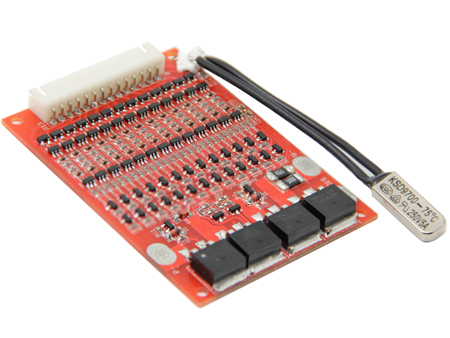

   48V 40A 리튬이온,폴리머 Battery cell blance (13cell) 용

  1. Balanced current: 80mA (VCELL = 4.20V when)
   2.Balanced from the handle: 4.15 ± 0.03 V
   3. Overcharge threshold: 4.3 ± 0.05 V overcharge Delay: 75mS
   4. Overcharge release: 4.05 ± 0.05 V

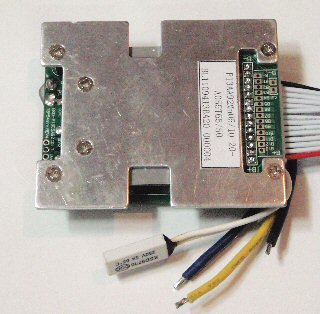

   48V 30A 리튬이온,폴리머 Battery cell blance (13cell) 용

   Balanced current: 80mA (VCELL = 4.20V when)
   Balanced from the handle: 4.15 ± 0.03 V
   Overcharge threshold: 4.3 ± 0.05 V overcharge Delay: 75mS
   Overcharge release: 4.05 ± 0.05 V

48V 30A 리튬이온,폴리머 Battery cell blance (13cell) 용

Balanced current: 80mA (VCELL = 4.20V when)
Balanced from the handle: 4.15 ± 0.03 V
Overcharge threshold: 4.3 ± 0.05 V overcharge Delay: 75mS
Overcharge release: 4.05 ± 0.05 V
Over-discharge threshold: 3.0 ± 0.08 V
Over-discharge delay: 5mS
Over-discharge release: disconnect the load, and each single battery voltage is higher than the discharge threshold;
Overcurrent threshold: 40 ± 5 A (based on customer selection)
Overcurrent release: disconnect the load release
Operating Current: 30 ± 5A
Static power consumption: <0.5mA
Using the occasion: 48V electric bicycles, robots, etc.
