LiFepo4 - BMS (cell
Blancer) ( 아래 이미지는 판매용이아니며
제품생산에 필요한 자료입니다) |
|
인산철 ( LiFePO4 ) 배터리

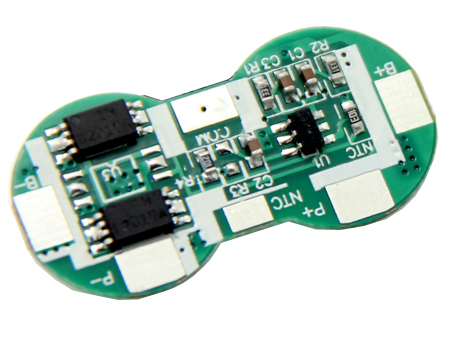

1S 3.2V BMS 10A~100A |
   |
4S 12.8V BMS 10A~100A |
  |
8S 25.6V BMS 10A~100A
24V SCOTTER |
  |
12S 38.4V BMS 10A~100A
36V E-BIKE |
  |
16S 51.2V BMS 10A~100A
48V E-BIKE |
 |
24S 76.8V BMS 10A~100A
72V MOTOR CYCLE |
  |

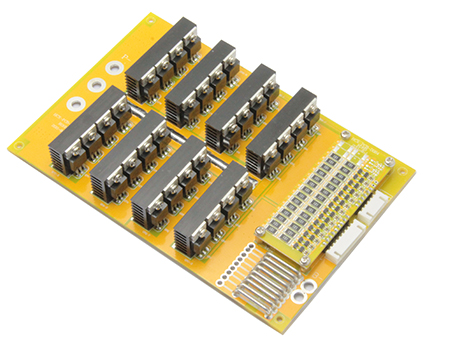

인산철 24V~48V ( 80A~100A ) |
  |
|

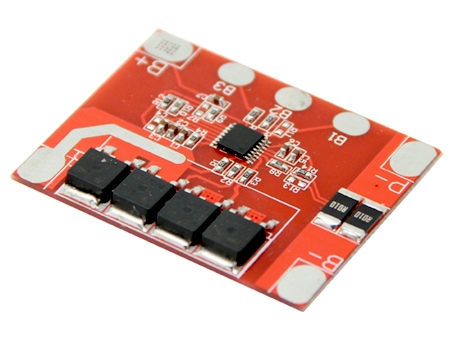

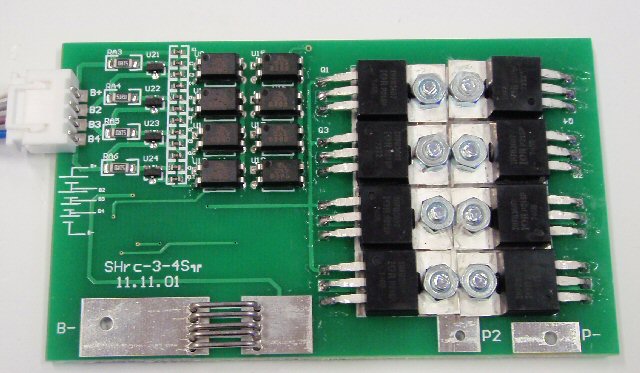

LiFePO4 4cell (12.8V) Cell Blance BMS 40A (MAX 60A)
- 균형
전압을 충전 3.60V ± 100mV * 4
- 균형 전류를 충전 35mA ± 5mA * 4
- 균형 전압을 방전 2.50 ± 100 MV * 4
- 균형
전류를 방전 25mA ± 5mA * 4
- 내부 / 임피던스 저항 20mΩ 미만
-
사이즈 : 55 * 16mm |
 |

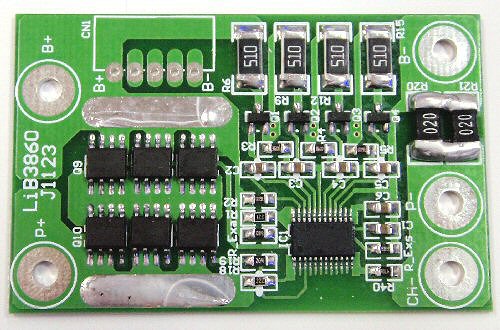

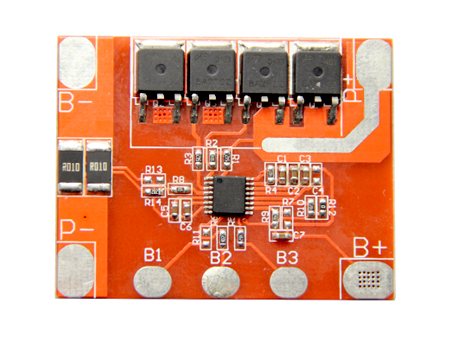

LiFePO4 4cell (12.8V) PCM MAX.
15A (IFR3860B4S)
- 균형 전압을 충전 3.60V ± 100mV * 4
- 균형 전류를 충전 35mA ± 5mA * 4
- 균형 전압을 방전 2.50 ± 100 MV * 4
- 균형
전류를 방전 25mA ± 5mA * 4
- 내부 / 임피던스 저항 20mΩ 미만
-
사이즈 : 55 * 16mm |
 |

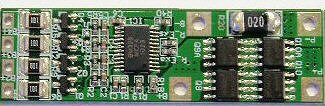

LiFePO4 4cell (12.8V) PCM MAX.
10A (LIB5516B4S)
- 과전류 검출 전압 VIOV 0.20 V, ± 15 MV
- 현재 과전류 검출 18A-25A
-
현재의 사업을 방전
10A
- 현재 충전 운영 10A
-
균형 전압을 충전 3.60V
± 100mV * 4
- 균형 전류를 충전 35mA ± 5mA * 4
- 균형 전압을 방전 2.50 ± 100 MV * 4
- 균형 전류를 방전 25mA ± 5mA * 4
- 내부 / 임피던스 저항 20mΩ 미만
-
사이즈 : 55 * 16mm |
 |

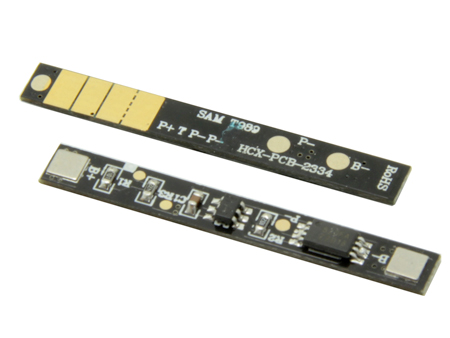

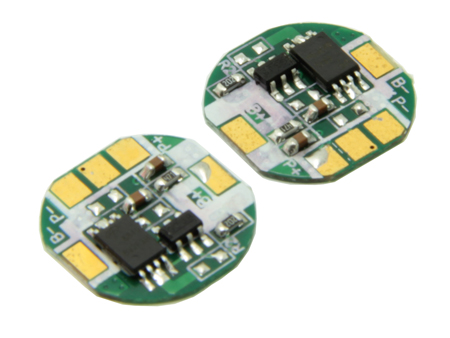

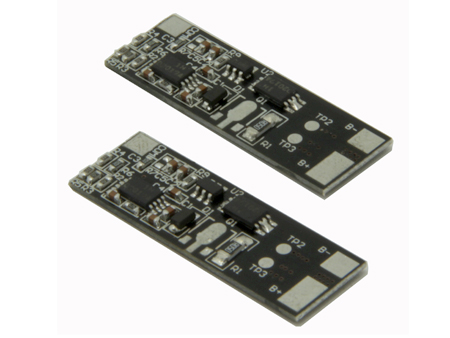

LiFePO4 4cell (12.8V) PCM MAX.
5A (IFR4513A)
- 과충전 검출
전압 VCU 3.90V
± 25 MV *
4
- 에누리 릴리스
전압 VCD 3.80 V, ± 50 MV * 4
-
검출 전압을 Overdischarge VDD2.00V ± 80mV * 4
-
릴리스 전압을 Overdischarge VDU 2.50
V, ± 80 MV * 4
-
과전류 검출 전압 VIOV 0.15
V, ± 35 MV
-
현재 과전류 검출 9A-13A
- 현재 운영
5A
- 내부 / 임피던스 저항 60mΩ
미만
-
사이즈 : 12.5 * 45mm |
 |

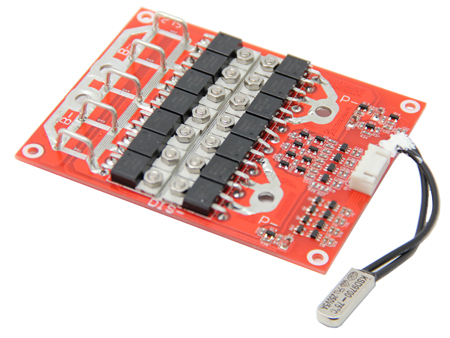

LiFePO4 8cell (24V) Cell Blance
BMS (MAX 30A)
Technical parameters:
- balanced
current: 50mA (VCELL = 3.90V pm)
- equalizer from the
control point: 3.65 ±
0.02 V
- overcharge
threshold: 3.90 ± 0.025 V
-
overcharge delay: 1 ± 0.5S
-
overcharge release: 3.80 ±
0.05 V
- over-discharge
threshold: 2.10 ± 0.05 V
-
put delay: 100 ±
50mS
- put release: disconnect the load, and each
single battery
voltage is higher
than the discharge threshold;
-
overcurrent threshold:
30 ± 5 A (selected according
to the customer)
- overcurrent
release: disconnect
the load release
- Over Temperature
Protection: interface required
the user to
increase the temperature
switch;
- Operating Current:
15 ± 5A (customer choice)
- Static
power consumption: <0.5mA
- Size: 98 x 90mm |
 |

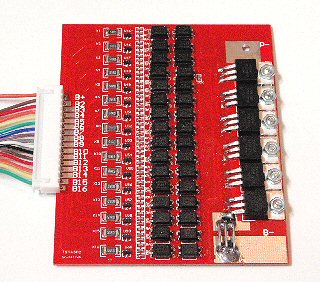

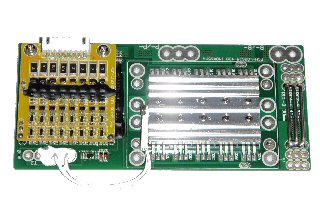

LiFePO4 16cell (48V) Cell Balance
BMS (MAX. 30A)
-16 string
Lifepo4 protection board current recommended
operating current 20A!
-Now upgraded to
red
-Overcharge: 3.75V * 16S
-Over discharge: 2V * 16S
-Over-current
protection: 30A
-Balanced
current: 60mA-80mA
-Balanced voltage: 3.55V |
|

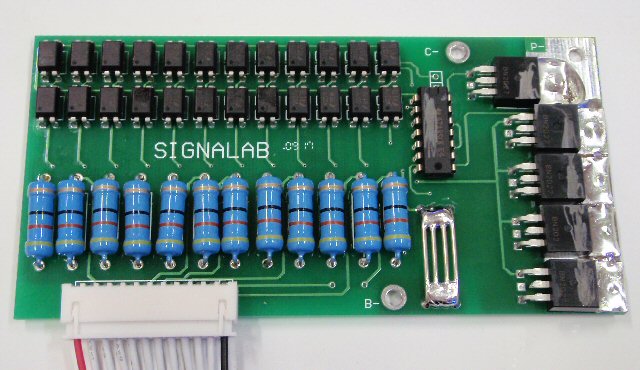

LiFePO4 12cell (36V) Cell Balance BMS (MAX. 30A)
Technical parameters:
-
balanced current: 80mA (VCELL
= 3.90V pm)
-
equalizer from
the control
point: 3.75 ± 0.02 V
-
overcharge threshold: 3.90 ±
0.025 V
- overcharge
delay: 1 ± 0.5S
- overcharge release: 3.80 ± 0.05 V
-
over-discharge threshold: 2.10 ±
0.05 V
- put delay: 100 ±
50mS
- put release: disconnect the load, and each
single battery
voltage is higher
than the
discharge threshold;
- overcurrent
threshold: 60 ± 5 A (selected
according to the customer)
- overcurrent
release: disconnect
the load release
- Over Temperature
Protection: interface required
the user to
increase the temperature
switch;
- Operating Current:
30 ± 5A (customer choice)
- Static
power consumption: <0.5mA
- Size: 120mm
* 60mm * 3mm |
